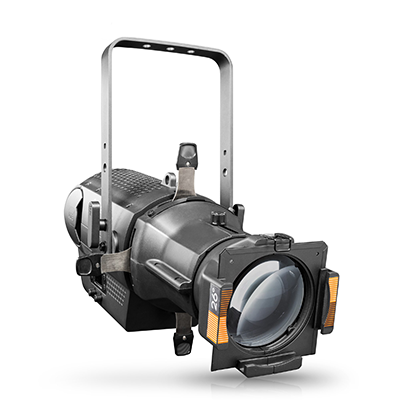

Actoris Profile FC

Categories: , , , SKU: CLPPRO100

ADB’s Actoris Profile FC is a 6-colour ellipsoidal with advanced features, incorporating state-of-the-art software which gives it top-notch performance, especially in terms of colour control. It was designed to be user friendly, and it combines features that allow it to be used in manual mode or be controlled from a lighting desk in TV studios and theatres.

Description

The light source is based on an RGBAL + ROYAL BLUE system, which means any desired shade of colour can be produced, including an incredible array of pastel hues, with a CRI of up to 97. It has variable colour temperature correction from 2500K to 8000K, and perfect Planck-curve CCT.

It offers multifarious functions: stable colour consistency over time and with temperature changes due to combined fixture calibration by using CloudIO; a wide colour gamut, including deep blue and deep red; tint correction: +/- green/magenta adjustment; tungsten mode, to emulate the behaviour of a halogen lamp while dimming from 0 to 100% and vice versa; high colour stability and accuracy even in tungsten mode, thanks to a high-resolution driver; repeatable colours from fixture to fixture.

The algorithm that regulates the colour control system is perfectly comparable to that of the Claypaky Sinfonya Profile, with advanced, standard, white, and single-channel modes.

The Actoris Profile FC is a practical, smart, modular tool: you can select the optical unit you prefer to match the light fixture: you can choose from a 15°-30° zoom, a 25°-50° zoom, and seven fixed lenses (5°, 10°, 14°, 19°, 26°, 36° and 50°). The system is also compatible with other optical units. Similarly, a whole range of beam-enriching accessories can be fitted, including a gobo holder, a frost filter holder,and an iris.

The 24-bit dimmer with different curves means you can adjust its light intensity smoothly and gradually. An automatic variable speed ventilation system allows the fixture to run in lownoise mode.

The Actoris Profile FC is an advanced system, which combines a robust construction with top-class optical and lighting features and adds advanced software that provides functions which were hitherto not possible on fixtures of this type. It is perfect in theatres, television studios, auditoriums, concert halls and conference rooms.



Light Source

6-color (RGBAL+Royal Blue) LED Engine (370W max)

Zoom range

15°-30° zoom, 25°-50 zoom, 5°, 10°, 14°, 19°, 26°, 36° and 50° fixed lenses



CLPPRO100 Actoris profile FC datasheet.pdf    294.83 KB
CLPPRO100 ActorisProfileFC Instruction Manual.pdf    1.77 MB
