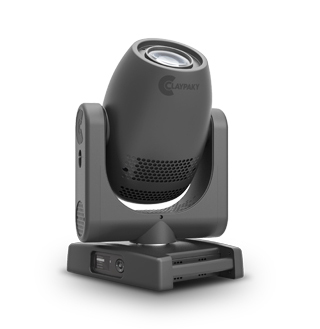

Axcor Spot 300

The new Axcor 300 family of moving LED fixtures brings Claypaky’s no-compromise quality and performance to the broad mid-market.

Send an enquiry

Description

The quality of their effects, their construction, and their high light output derived from the high-end products Claypaky specializes in.

The AXCOR SPOT 300 has 17 gobos on 2 wheels, including 7 high quality dichroic rotating gobos.  Weighing just 20 Kg and measuring a little over 500 mm, this unit incorporates features that are not often found in models of this size, like a rotating prism, a motorised iris, a soft edge filter, a 16-bit dimmer, and a 8-40° zoom.

It boasts cutting-edge electronic and software technology, with all the features that enable optimal fixture management and maintenance over time.With a price-point, physical size and power consumption that disguise its strength and creative potential, the Axcor Spot 300 enables a new world of expression in touring, events, TV, theatre and installed lighting markets.

  • Source: 180W White LED engine (7000 K)
  • 8°-40° linear zoom
  • Motorised focus lens
  • CMY System
  • One colour wheel with 7 colours (including 1 CTO filter)
  • One wheel with 7 rotating gobos
  • One wheel with 10 fixed gobos
  • Rotating 4-facet prism
  • Mechanical Iris
  • Frost filter
  • 16-bit Electronic Dimmer with 4 curves
  • Electronic strobe@24 f/sec
  • Extremely compact and lightweight

POWER SUPPLIES
AC power input Neutrik PowerCON
100-240V, 50/60 Hz

INPUT POWER
340 VA @230Vac – 50Hz
Total Lumen output: 7000 lumens

LIGHT SOURCE
180W White LED engine (7000 K)

OPTICS
8°-40° linear zoom
Motorised focus lens

COLOUR SYSTEM
CMY System
One colour wheel with 7 colours (including 1 CTO filter)

EFFECTS SECTION
One wheel with 7 rotating gobos
One wheel with 10 fixed gobos
Rotating 4-facet prism
Mechanical Iris
Frost filter

CONTROL AND PROGRAMMING
23 DMX 512 control channels
Control signal USITT DMX 512
Protocols RDM, WebServer
Display Graphic LCD backlit b/w Display
Display battery self-charging buffer battery
16-bit Electronic Dimmer with 4 curves
Electronic strobe@24 f/sec
Pan/Tilt Resolution 16 bit
Dimmer Resolution 16 bit
DMX signal connection 5 pole XLR input and output

BODY
Aluminum and steel structure with plastic covers
Two side handles for transportation
Device locking PAN and TILT mechanisms for transportation and maintenance

MOVING BODY
PAN range 540°
TILT range 270°

ELECTRONICS
Long life self-charging buffer battery
Function reset from the lighting desk
“AUTOTEST” function from menu
Electronic monitoring with status error
Cooling system monitoring
DMX level monitoring on all channels
Internal data transmission diagnostics
Firmware Upgrade via Web Server
Firmware upload from another fixture
Protocols/Functions: RDM, Web Server

SAFETY DEVICES
Minimum distance of illuminated objects 3 meters (9’ 10”)
Minimum distance from flammable materials 0.2 meters (8”)
Max ambient temperature 40°C (104°F)
Max temperature of the external surface 90°C (194°F)
Forced ventilation with axial fans

WORKING POSITION
Working in any position
Hanging system: with fast-lock omega clamps (1/4 turn) on the base

CE MARKING
In conformity with the European Directives:
• 2014/35/EU – Safety of electrical equipment supplied at low voltage (LVD)
• 2014/30/EU – Electromagnetic Compatibility (EMC)
• 2011/65/EU – Restriction of the use of certain hazardous substances (RoHS)
• 2009/125/EC – EcoDesign requirements for Energy-related Products (ErP)

WEIGHT
20.2 Kg (44.53 lbs)
Dimensions: (LxWxH): 350 x 276 x 553 mm
13.78″ x 10.86″ x 21.77″
