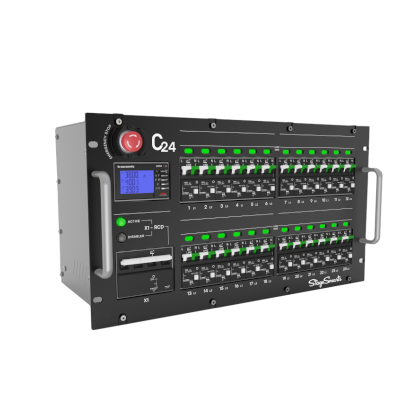

C24

The C24 is a 24-channel power distribution unit that suits as wide range of applications and purposes, especially powering LED based lights and video displays. Compact and with powerful features it gives you the flexibilty to adapt to a wide range of applications.

Send an enquiry

Description

The C24 sets a new standard for portable power distribution with a powerful feature set not before seen in this size and price range for power distribution units. Features that will keep your equipment working under the toughest conditions and giving you the advantage in a competitive and rapidly changing environment.

Sharing the same high performance parts and technologies as our award winning smartPDU series,the C24 is suitable for the most demanding projects and toughest conditions. With the C24, serious power distribution is now available for a much broader range of customer and applications. Be safe, not sorry.



Power input: ILME 4-pole + ground / 80A
Main breaker: Disconnector, 4-pole, 63A
Over-voltage Protection: Immediate disconnection in case of lost neutral connection.
Master Metering: All incoming voltages, currents (including neutral), power factor, frequency.
No of main channels: 24
Capacity and protection: 16A per channel, RCBO A-type, 30mA
Main output connections: Multipins, type depending on model Channel 21-24 also on True1 + user selectable socket
Auxilliary channels: 32A, 5-pin CEE
Capacity and protection: 32A, 4-pol breaker with adjustable and switchable RCD (30-300mA)
Dimensions & weight: 483 (19”) x 266 (6U) x 354mm 23 kg


SMAPDU224 - C24 Power Distribution Datasheet.pdf    561.3 KB
