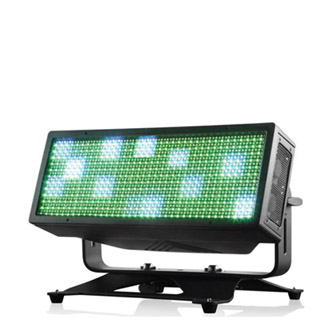

Collider FC Strobe

Categories: , , , , , , SKU: LEDSTR100

An IP65 rated RGBW pixel-mappable LED strobe with 48 individually controllable segments for dynamic effects and visuals.

Send an enquiry

Description

  • 48 individually controllable segments for dynamic effects and visuals
  • Two-layer foreground and background colours and effects
  • Stunning selection of pre-programmed macros and special effects
  • IP65-rated tour-grade construction
  • White colour temps from 2700K ~ 8000K
  • Doubles as an LED blinder in continuous mode
  • Continuous operation possible due to advanced thermal design
  • Display invert & auto-off, menu key lock
  • D-MX, RDM and Artnet control

Lamp Source: 1728 x 1W RGBW LEDs
Power Supply: 100-240V AC, 50/60 Hz
Power Consumption: 1500W (Instant) / 589W (Continuous)
DMX Connection: IP65 5-pin XLR In/Out & ArtNet In/Out
DMX Channels: 3 / 4-1 / 4-2 / 6 / 7 / 8 / 14 / 144 / 192 / 202
Beam Angle: 98°
Output: 180,000 lm
Dimensions: 468 (L) x 179 (W) x 268 (H) mm
Weight: 15kg



LEDSTR100 - Collider FC Datasheet.pdf    1.79 MB
LEDSTR100 - Collider FC Manual 1.0 - 1.22 Firmware.pdf    936.58 KB
LEDSTR100 - Collider FC Manual 1.3+ Firmware.pdf    1.14 MB
LEDSTR100 Collider FC 1.0-1.22 Firmware GMA2&3 Fixure Profiles.zip    68.57 KB
LEDSTR100 Collider FC 1.3+ Firmware GMA2&3 Fixure Profiles.zip    83.1 KB
City Calm Down – Echoes In Blue Tour
Eurovision – Australia Decides
ResX Deliver Fury Road for Whitenight
ETS Expand Inventory with Ayrton, Claypaky, Martin and ShowPRO

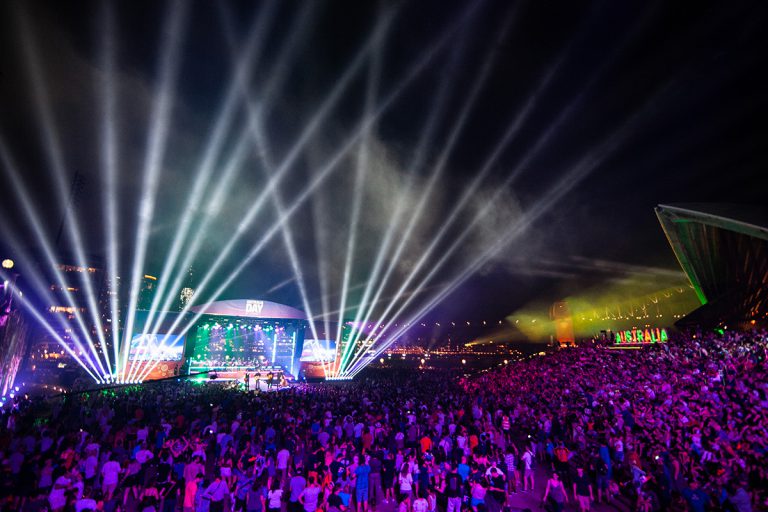

Australia Day Celebrations Light up Circular Quay

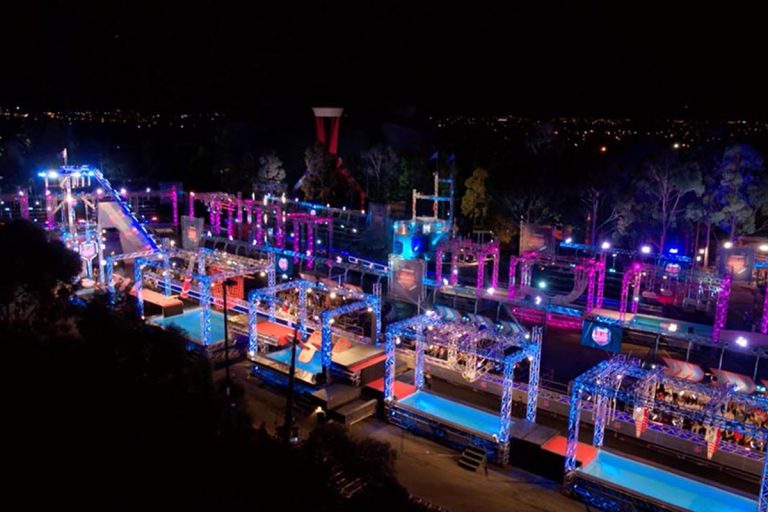

Extra Obstacles for Australian Ninja Warrior

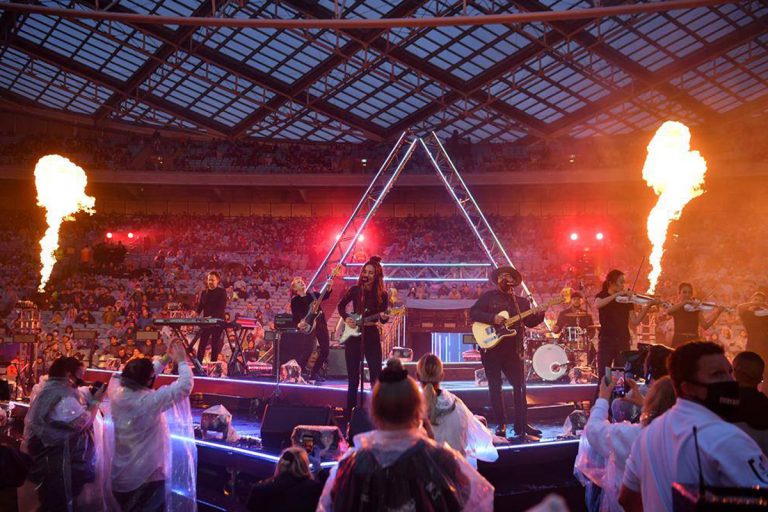

The 2020 NRL Grand Final

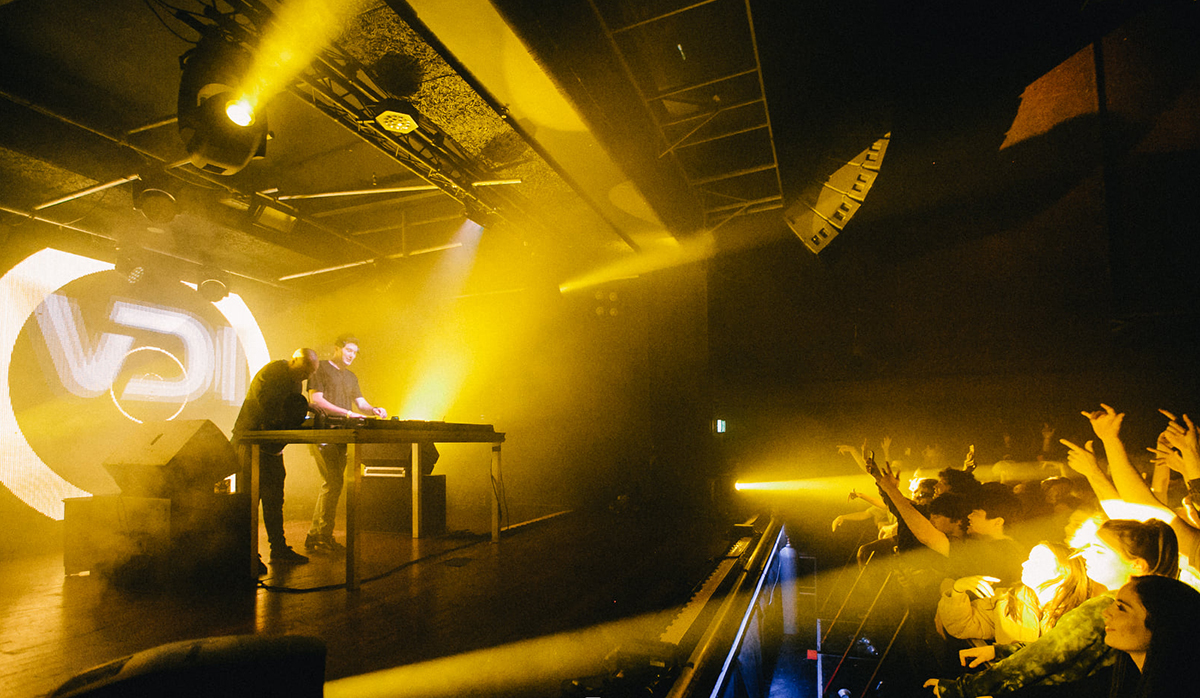

Studio the Venue Upgrades with Claypaky, Martin, ShowPRO and MA
