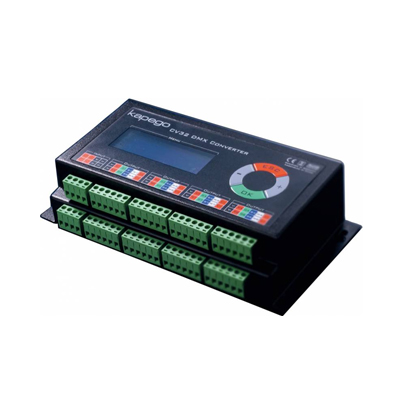

DMX PWM Dimmer DC 12-24v CV32

Category: SKU: LEDCON364 Tag:

The CV32 DMX Converter was designed to control large scale RGBW installation with only one centralized unit for easy programming and maintenance.

Description

The CV32 DMX Converter was designed to control large scale RGBW installation with only one centralized unit for easy programming and maintenance. Various DMX modes allow a wide range of DMX controllers to be used and the installation can easily be switched from static colour control into a highly versatile light show.

FEATURES:

  • DMX to RGBW converter that can be used with any DMX512 controllers according to USITT standard
  • The controller can be operated with a maximum of 3A loading power per channel (max. rated load 48A)
  • Easy DMX address setting via 20×4 digit LCD display
  • Controls all LED fixtures with common anode (+)
  • PWM refresh rate of 1000Hz, suitable for TV studio standard
  • 12 BIT DMX resolution with gamma correction for smooth dimming and color mixing
  • Overheat protection
  • 4 DMX Modes
  • 16 internal programs
  • 24 static scenes
  • Strong metal housing with foil keyboard and mounting holes

ELECTRICAL CHARACTERISTICS
Max. load per channel 36W @ 12V / 72W @ 24V
Total maximum load 2x 288W @ 12V / 2x 576W @ 24V
Input voltage DC 12-24 V
Input current max. 48A
Connection possibility Screw terminals

ABSOLUTE MAXIMUM RATINGS
Working temperature -5˚C – +40˚C
IP rating IP-20

LIFESPAN
No of switching cycles 100,000

GENERAL CHARACTERISTICS
Channels 32
Control signal DMX 512
DMX resolution 12-BIT
Material Metal case
Colour Black
Mounting Screw holes

DIMENSIONS & WEIGHT
Length 210 mm
Width 100 mm
Height 50 mm
Weight 0.95 kg



Datasheet.pdf    2.21 MB
