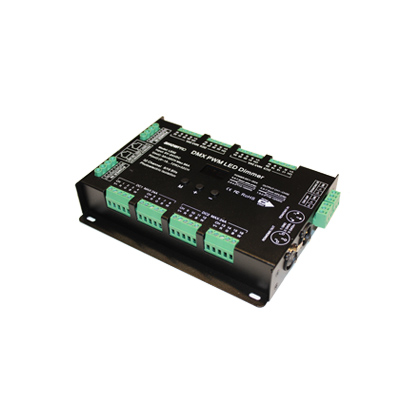

DMX PWM Dimmer DC 12-24v CV32 MKII

The DMX PWM Dimmer DC 12-24v CV32 MKII is developed for constant voltage to LED tape through an advanced micro-computer control technology to transfer DMX512/1990 signal to PWM signal.

Send an enquiry

Description

The DMX PWM Dimmer DC 12-24v CV32 MKII is developed only for constant voltage LED lamps. It adopts advanced micro-computer control technology to transfer DMX512/1990 signal to PWM signal. 32 channels output, max 3A each channel, 65536 gray scales, workable for single color, color temperature, RGB and RGBW led lamp.

Features:

Easy operation with OLED screen and touch buttons.
8bit (256 levels)/16bit (65536 levels) grey level optional.
Support 3 kinds of DMX ports with signal isolation function: 3-pin XLR, RJ45 and green terminal (with signal amplifier function).
With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
Optional for standard, linear, LOG or custom 0.1-9.9 dimming curve.
Power-off data saved function.

Input Voltage: 5-24VDC

Max Load Current: 3A x 32Ch, Max 96A

Max Output Power: 480W(5V)/1152W(12V)/2304W(24V)

Output Resolution: 256 (8-Bit), 65536 (16-Bit)

Input Signal: DMX512/RDM

Output: 32 Channel Constant Voltage PWM

PWM Frequency: 1K, 2K, 4K, 8K (Selectable)

I/O Ports: XLR3, RJ45, Terminal

Dimensions: 195L x 145W x 38H

Weight: 810g

LEDCON370 - 32CH LED PWM Driver Manual.pdf    5.95 MB
