E1 LED Profile RGBW

Category: SKU: LEDMOV420

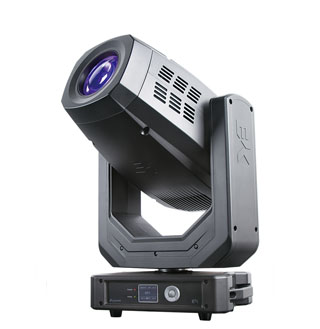

The E1 LED Profile Zoom Spot comes with RGBW colour mixing and an independent framing system.

OUT OF STOCK – Please call your nearest office for more information or a recommended replacement product.

Send an enquiry

Description

– Infinite RGBW colour mixing
– Advanced optical system projects saturated colours
– Extremely even spot with flawless field consistency
– Proprietary innovative 4x independent framing shutter system
– Ultra smooth dimming and perfectly consistent colour mixing
– Flawless 16-bit 540°/270° motorized pan/tilt movement
– Motorized focus, iris and linear 4x (10°-40°) zoom
– Independent variable frost, prism, animation wheel
– Pan/tilt inverse, display inverse and auto-blackout
– Selectable dimming curves, white balance, fan speed
– White colour temp presets (2700K ~ 8000K)
– Onboard colour presets and macros
– DMX, Artnet and W-DMX control

Photometrics
Light Source 400W RGBW LED
Beam Angle 10°- 40°
Output 6400 lm
Power
Mains 100 – 240 VAC, 50/60 Hz
Consumption 460W
Power connections PowerCon In/Out
Power linking Up to 3 units @ 230V
Key Features
Colour mixing RGBW
Pan movement 540°
Tilt movement 270°
CTC presets 2000K – 8000K
Rotating gobos 7 + 1
Effects wheel Animation
Framing Shutters 4 (rotatable)
Focus Motorized
Zoom 10 – 40°
Iris 0% – 100%
Frost 0% – 100%
Strobe 1 – 30Hz
Dimming 4 dimming curve modes
Prism 3-facet, bi-directional
variable-speed rotation
Control
Protocol DMX / Artnet / W-DMX
DMX channels 36 / 38
Data connections 3- or 5-pin XLR In/Out
RJ45 In/Out
Display TFT 320 x 240
Built-in shows 35 framing shutter macros
Physical
Size 355 x 260 x 682 mm
Weight 26.5 kg





LEDMOV420 - E1 Profile Datasheet.pdf    260.63 KB
LEDMOV420 - E1 Profile Gobo Info.pdf    237 KB
LEDMOV420 - E1 Profile Manual.pdf    7.11 MB
MA2 Fixture LEDMOV420.zip    8.03 KB
