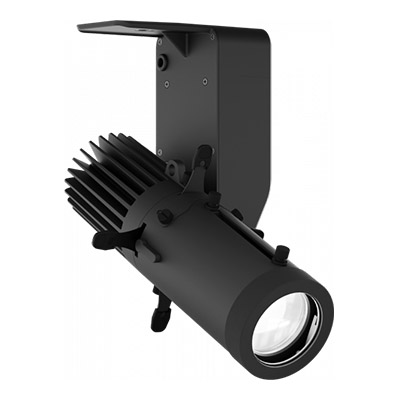

EclDisplay DATblack

Categories: , , , , , SKU: MUSDIS212

EclDisplay 25W 3000K Data Control Black is a revolutionary and flexible LED spotlight designed for galleries, commercials and any public venue where an advanced but classy fixture, with several control options, sources and optic versions available to precisely meet any application.

Send an enquiry

Description

The EclDisplay DAT can be set and addressed through RDM, and includes a broad set of on-board input control options: DMX, DALI Type 6, phase-cut dimming or local knob dimming control. The EclDisplay DAT includes a high-efficiency 25W White, high CRI LED source and it is completed with a wide selection of optional zoomable profile or wash lenses, and other optical accessories like louvres and snoots, making it truly a multi-purpose fixture.

Also available in the following versions:

Code: MUSDIS203 EclDisplay Data Control 2700K White

Code: MUSDIS212 EclDisplay Data Control 3000K Black

Code: MUSDIS213 EclDisplay Data Control 3000K White

Code: MUSDIS222 EclDisplay Data Control 4000K Black

Code: MUSDIS223 EclDisplay Data Control 4000K White

Code: MUSDIS232 EclDisplay Data Control 5600K Black

Code: MUSDIS233 EclDisplay Data Control 5600K White

Features:

  • Data control through RDM, DMX, DALI Type 6 and local knob dimming
  • 25W high CRI White LED
  • Multiple lens options: zoomable profile or wash optics (15-30, 25-50, 20-40)

LIGHT SOURCE
  • Source: 25W White COB LED
  • Luminous flux: (3000 K – 17°) 1556 lm – (3000K – 36°) 1676lm @full
  • Lux: (3000K – 17°) 1556 lx – (3000K – 17°) 887 lx – (3000K – 36°)  @5 m full
  • CRI:  90 @3000K
  • TLCI: 88 @3000K
  • TM30 Rf: > 89 @ 3000K
  • TM30 Rg: < 101 @3000K
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

  • Zoom: (wash lens – optional) 15° ~ 30° or 25° ~ 50° – (profile lens – optional) 20° ~ 40°
  • Other: 360° lens rotation – optional 360° rotating barndoors and gel frame holder
  • Other: (profile lens) shutter blades lockable
  • Other: (profile lens – optional) manual rotating gobo holder size E, outer: 37 mm – image: 23 mm – thickness: max 3 mm

DYNAMIC EFFECTS

  • Control Resolution: 16bit dimmer
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment

BODY

  • Hardware on-board: lockable tilt with screw
  • Body: aluminium die-casting
  • Body colour: RAL 9004 or RAL 9010
  • Other: cable not included – Cable diameter range: 6 – 10 mm

CONTROL

  • Protocols: Local Knob, DMX, DALI Type6, RDM
  • DMX channels: 1 / 2 / 3 / 4channel
  • RDM: RDM for remote monitoring and settings
  • Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 – 30 Hz, electronic
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 33W
  • Power factor: > 0,95

PHYSICAL

  • Operating Temperature: -10° ~ +45°
  • IP rating: 20
  • Cooling: passive cooling and fan-free
  • Suspension and fixing: track / hanging / ceiling installation
  • Data connection: screw terminal blocks
  • Power connection: screw terminal blocks
  • Dimensions (WxHxD): 141X200x115.5mm / 5.55”x4.55”
  • Weight: 1,4kg / 3.09lbs


ECLdisplay 25W data control.pdf    3.58 MB
