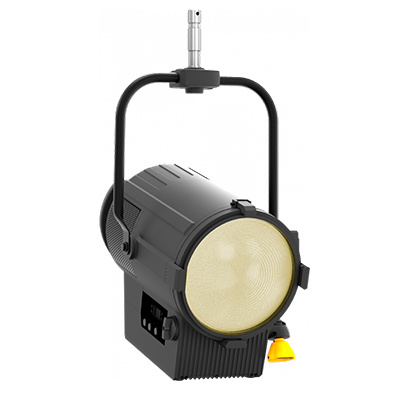

EclFresnel 2KPTW

Description

EclFresnel 2KPTW is an advanced LED replacement of traditional 2K Fresnel lamps. Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and extensive colour reproduction.
The optical system harnesses the power of a 500W custom LED with 6 colours to create an even projection, beautiful colours and precise whites, with the option to apply +/- green and magenta correction to match other light sources.
Featuring HD dimming and tuning from 2.800 K to 10.000 K, the EclFresnel 2KPTW delivers both on performance and quality of output that is demanded from this level of light.

Features:

Tunable white 2.800 K – 10.000 K with high CRI and extensive colour mixing
+/- green and magenta white tuning
Truly silent operation making it perfect for studio and stage use

LIGHT SOURCE

Source: 500W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
CCT: 2.800 K – 10.000K
CRI: 89 @ 3200K
R9: 80 @ 3200K
Luminous flux: (17°) 10’100 – (52°) 13’400lm @full
Lux: (17°) 3’864 lx – (52°) 710lx @5 m full
Source life expectancy: > 70.000 h
Other: TM30: 89 @ 3200K – TLCI: 73 @ 3200K

OPTICS

Zoom: 17° – 52° half peak angle
Lens diameter: 250mm / 9.84”
Lens type: fresnel zoom lens
Other: spigot, barn door and gel frame included

COLOUR SYSTEM

Colour mixing: 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
CTC: CTC control through dedicated DMX channel, + / – green and magenta correction and amber shift activation by DMX
White presets: 2.800 K – 10.000K
Colour wheel: virtual colour wheel with presets
Macros: several pre-build macros with adjustable speed

DYNAMIC EFFECTS

Static colour mode: a selection of static colour
Manual colour mode: manual adjustment of intensity, CT, colour correction from knob
Auto mode: built-in programs with execution speed adjustment
Special features: linear crossfade from a white to any colour and CTO applied on colours

BODY

Hardware on-board: filter frame, 8 doors barndoor, spigot
Pan angle: 360° with manual regulation
Tilt angle: 150° with manual regulation
Body: sturdy die-cast aluminium body
Body colour: black, white finishing available
Other: Spigot 28 mm

CONTROL

Protocols: DMX512, RDM, local knob
DMX channels: 1 / 2 / 5 – 1 / 5 – 2 / 7 – 1 / 7 – 2 / 8 / 9 / 12 / 13 / 16 / 19 / 21channel
RDM: RDM ready for fixture remote monitor and settings
Display: black OLED high-resolution display
Firmware upgrade: yes, via USB – DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
Other: 16bit control of dimmer and colour

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 – 30 Hz, electronic
Operating temperature: -10° ~ +45°
Flicker: flicker-free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240 V – 50/60 Hz
Max power consumption: 400W
Output (at 230 V): 5 units on a single power line
Power factor: >0,95

PHYSICAL

IP rating: 20
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: bracket for hanging and positioning
Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Dimensions (WxHxD): 401x576x456mm / 15.79”x22.68”x17.95”
Weight: 18kg / 39.68lbs
