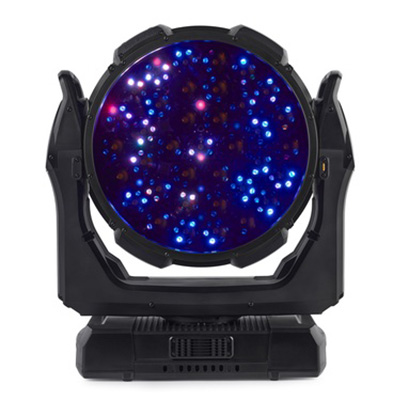

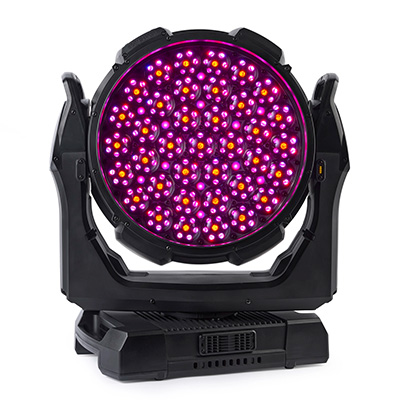

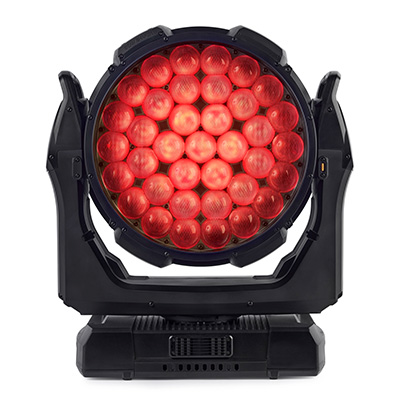

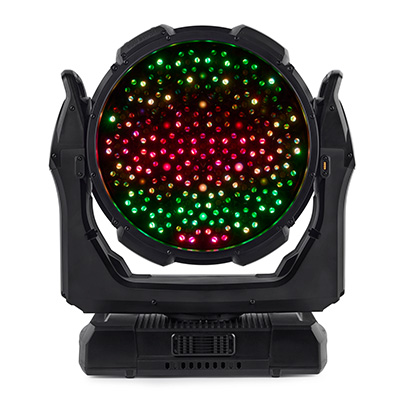

MAC Aura Raven XIP

PHYSICAL

• Width (across yoke): 528 mm (20.8 in.)
• Width (base): 429 mm (16.9 in.)
• Height (head forward): 588 mm (23.1 in.)
• Height (maximum): 603 mm (23.7 in.)
• Depth (head): 241 mm (9.5 in.)
• Depth (base): 285 mm (11.2 in.)
• Minimum center-to-center distance in side-by-side installation: 540 mm (21 in.)
• Weight: 28.8 kg (63.5 lbs.)



DYNAMIC EFFECTS

• Beam Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
• Beam Dimming options: Choice of four dimming curves
• Beam Colour Mixing: RGBL, independently variable 0 – 100%
• Beam Colour Temperature Control: Variable 2,000 – 12,850 K
• Beam Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
• Beam Virtual Colour wheel: 48 colour presets, continuous rotation & random colour
• Zoom: Motorised with 1:5.5 zoom ratio
• Pan: Motorised 540°
• Tilt: Motorised 250°
• Beam PixelMapping: Individual RGB control of each of the 37 Beam pixels
• Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
• Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe, instant open and blackout
• Aura Dimming options: Choice of four dimming curves
• Aura Colour Mixing: RGB, independently variable 0 – 100%
• Aura Colour Temperature Control: Variable 2,000 – 12,850 K
• Aura Tint Control: Variable green-magenta shift Δuv -0.05 – +0.05
• Aura Virtual Colour wheel: 48 colour presets, continuous rotation & random colour
• Aura PixelMapping: Individual RGB control of each of the 234 Aura pixels
• Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
• Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronised/combined; featuring foreground colour, background colour, speed and direction control
• LED Frequency control: Variable LED PWM control



CONTROL AND PROGRAMMING

• Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and Martin P3
• Protocol Detection: Automatic
• DMX Modes: Compact, Basic, Extended, Ludicrous, Plaid & Compact Direct
• DMX Channels: 22, 38, 149, 266, 851 & 22
• 16-bit Controllable Parameters: Beam & Aura Dimming, Beam Colour Mixing, Zoom, BeamShaper Indexing, Pan and Tilt
• Setting and Addressing: Display Menu, NFC, RDM, RDM over Art-Net or Martin P3
• Local User Interface: Backlit LCD Display with battery-powered operation and integrated NFC antenna
• Fixture identification: User-settable ID number
• DMX Compliance: USITT DMX512-A
• RDM Compliance: ANSI/ESTA E1.20
• Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
• sACN Compliance: ANSI E1.31 – 2018
• Martin P3 Compliance: P3 System Controller Software 6.2.0 or newer
• DMX/RDM Transceiver: Galvanic-isolated RS-485
• Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
• Firmware Update: via USB type C memory device, via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller



OPTICS

• Front Lens Diameter: 343 mm (13.5 in.)
• Zoom Range: 1:5.5
• Full Zoom Range at Half Peak (Beam Angle): 6.5° – 34.2°
• Full Zoom Range at Tenth Peak (Field Angle): 9.7° – 50.0°
• Beam Light Source: 37 x 40 W RGBL LED
• Aura Light Source: 234 x 0.25 W RGB LED
• Max. Total Beam LED Engine Power: 830 W
• Max. Total Aura LED Engine Power: 70 W
• Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*

*Figure obtained under manufacturer’s test conditions



PHOTOMETRIC DATA

• Light Engine Luminous Output: 37,000 lumens
• Fixture Luminous Output Wide: 24,500 lumens
• Fixture Luminous Output Narrow: 18,000 lumens
• Peak Luminous Intensity Narrow: 1,400,000 cdCCT: Variable 2,000 K – 12,850 K (+/- 200 K)
• CRI (Colour Rendering Index) (default): ≥ 75
• CRI (Colour Rendering Index) (optimised): ≥ 86
• CQS (Colour Quality Scale) (default): ≥ 86
• CQS (Colour Quality Scale) (optimised): ≥ 89
• TM-30 Rf (IES TM-30-15 Fidelity Index) (default): ≥ 80
• TM-30 Rf (IES TM-30-15 Fidelity Index) (optimised): ≥ 84
• TM-30 Rg (IES TM-30-15 Gamut Index) (default): ≥ 114
• TM-30 Rg (IES TM-30-15 Gamut Index) (optimised): ≥ 105
• TLCI (Television Lighting Consistency Index) (default): ≥ 68
• TLCI (Television Lighting Consistency Index) (optimised): ≥ 87
• Beam LED Refresh Rate: 2,400 Hz with adjustment (+/- 2%) via DMX and 19,200 Hz mode
• Aura LED Refresh Rate: 62,500 Hz
• Binning: Tight colour and flux binning
• Calibration: Full Gamut Colour Calibration of Beam and Aura
• Colour Modes: Direct Colour Mode, Extended Gamut Mode and Calibrated Colour Mode

* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
* All Photometric Data measured at 6500 K white



CONSTRUCTION

• Housing: High-impact flame-retardant thermoplastic
• Colour: Black
• Protection rating: IP54



INSTALLATION

• Mounting points: 4 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
• Location: Indoor or Temporary Outdoor use
• Orientation: Any, except with display facing upwards in outdoor application
• Minimum distance to combustible materials: 0.2 m (7.9 in.)
• Minimum distance to illuminated surfaces: 2.5 m (98.4 in.)



CONNECTIONS

• AC mains power in/thru: Neutrik Rean powerCON TRUE1 TOP
• DMX and RDM data in/thru: Neutrik 5-pin locking XLR TOP
• Ethernet (Art-Net, sACN and Martin P3) in/thru, including fail-safe bypass: Neutrik etherCON TOP
• Firmware from flash memory: USB 2.0 type C port
• Accessory Plug-In: Universal Connect Module Slot



ELECTRICAL

• AC power: 100-240 V AC nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 17 A
• Typical earth-leakage current: 0.7 mA
• Power Factor: 0.99 @ 100 V / 120 V / 208 V / 230 V , 0.98 @ 240 V
• Max current draw: 11.3 A @ 100 V / 120 V , 5.4 A @ 208 V , 4.8 A @ 230 V / 240 V
• Typical current draw: 9.8 A @ 100 V , 8.1 A @ 120 V , 4.6 A @ 208 V , 4.2 A @ 230 V , 4.0 A @ 240 V *

Power Consumption

• Maximum: 1120 W
• Typical: 1020 W *
• Idle: 135 W *
• Hibernation: 6 W *

* Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Typical: full output white, no effects moving, regulated fan speed.
Idle: no output, no effects moving, regulated fan speed.
Hibernation: no output, motors de-energised, fans stopped, wake-up procedure to re-use fixture.



THERMAL

• Cooling: Forced air (temperature regulated, low noise, user-definable levels)
• Maximum ambient temperature (Ta max.): 40° C (104° F)
• Minimum ambient temperature (Ta min.): -10° C (14° F) – Warm up condition may apply
• Maximum surface temperature, steady state, at 40° C ambient: 80° C (176° F)
• Total heat dissipation (calculated, +/- 10%): 3478 BTU/hr.



ACOUSTIC DATA

• Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 36.4 dB(A)
• Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 23.6 dB(A)



ENVIRONMENTAL

• RoHS: Compliant
• REACH: Compliant
• WEEE: Compliant
• Proposition 65: Compliant
• Packaging: FSC Certified cardboard outer packaging & Recycled EPS inner packaging
• Efficacy (max output): 24.0 lm/W
• LWR*: 851 lm/kg (386 lm/lbs.)

*LWR = Lumen-to-Weight Ratio



APPROVALS
Australia/NZ: RCM



INCLUDED ITEMS

• Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
• SoftLens
• Multi-Language Safety and Installation Manual



RELATED ITEMS

• Martin Companion Cable (for firmware update over DMX): P/N 91616091
• Martin Companion Software (for firmware update over DMX/Ethernet and fixture setup/configuration via NFC): Free download from www.martin.com, app store and play store



ACCESSORIES

Optical

• MAC Aura Raven XIP BeamShaper Module: P/N MAR-91614064HU

Transport and Storage

• Flightcase for 2 x MAC Aura Raven XIP: P/N MAR-91515064
• Additional SiP Foam Flightcase Insert for MAC Aura Raven XIP: P/N MAR-91611864HU

Consumables

• CR123A 3-volt lithium battery: P/N 05801011

Spare Parts

• Additional MAC Aura Raven XIP SoftLens: P/N TBD

Power Input Cables

• Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91611797
• Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.) P/N 91610173

Power Daisy-Chain Cables

• Power relay cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
• Power relay cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172

Power Connectors

• Cable Connector, Neutrik powerCON TRUE1 TOP Female: P/N 91611789HU
• Cable Connector, Neutrik PowerCON TRUE1 TOP Male: P/N 91611788HU

Installation Hardware

• G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
• Half-coupler Clamp: P/N 91602005
• Quick Trigger Clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
• Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
• Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007



VERIFIED THIRD-PARTY ACCESSORIES

Beam Control

• MAC Aura Raven XIP Top Hat: P/N City Theatrical TBD
• MAC Aura Raven XIP Hexcel Louver: P/N City Theatrical TBD
• MAC Aura Raven XIP Concentric Ring: P/N City Theatrical TBD

Universal Connect Module

• Multiverse Connect Module 2.4GHz: P/N City Theatrical 5914
• Multiverse Connect Module 900MHz: P/N City Theatrical 5915



ORDERING INFORMATION

• MAC Aura Raven XIP in EPS (in cardboard box, polystyrene packaging): P/N MAR-90250400HU
• MAC Aura Raven XIP in SiP (in cardboard box with SiP foam flight case insert): P/N MAR-90250405HU
• MAC Aura Raven XIP white in EPS (in cardboard box, polystyrene packaging): P/N MAR-90250410HU
