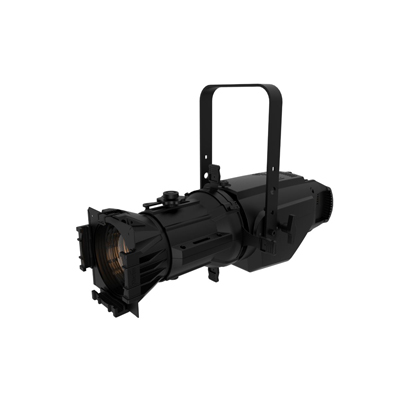

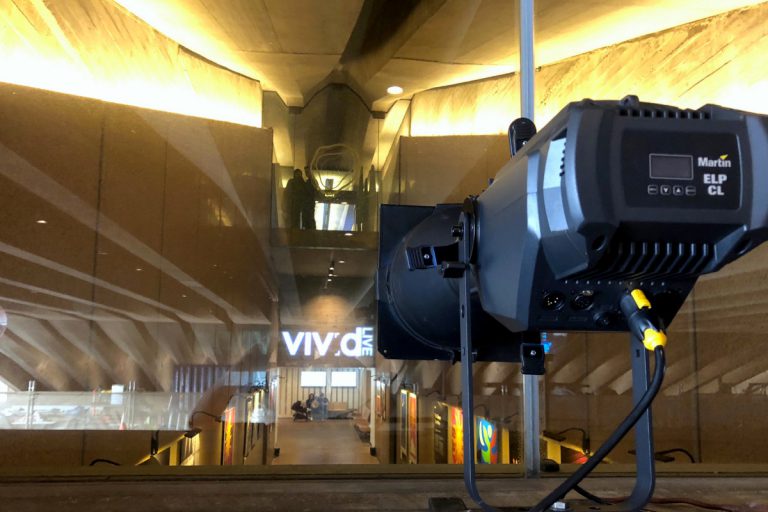

Martin ELP CL

Description

Ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves and 26 colours presets that match industry-standard colour filters. ELP fixtures can be configured with one of four Martin lens tubes in 19, 26, 36 and 50-degree beam angles and are compatible with third-party lens tubes along with a wide range of accessories including gel frames and gobos for flexibility in lighting design and inventory management.

Superior output, optics and colour rendering, combined with unparalleled ease-of-use and convenience, make Martin ELP CL the leading Colour LED ellipsoidal fixture in its class.

Features:

Impressive light output rating of 6,900 lumens (in High Output mode).
Superior CRI rating of 90 (in ‘High-Quality’ mode).
New operating modes, in addition to the existing ‘High Output’ and ‘Quality’ modes there is also a new ‘QUIET’ mode that has been added for near-silent operation.
Revolutionary focus and functionality—industry’s first gear-driven Fine Focus, Fast Focus for data-free focusing, and more.
Compatible with universal accessories—use existing lens tubes, gel frames, gobo holders and rotators
15-30 degree and 25-50 degree beam ELP Zoom lenses available in black and white (There is NO loss of light output using a Zoom compared to the traditional fixed lens on the unit, due to the unique 7 lens system in use, also no ‘banana’ effect.)

Accessories:

MARPRO110: Martin ELP Lens Tube 19 Degree

MARPRO111: Martin ELP Lens Tube 26 Degree

MARPRO112: Martin ELP Lens Tube 36 Degree

MARPRO113: Martin ELP Lens Tube 50 Degree

ELP Zoom Lenses expand the versatility of the line with two industry-standard beam ranges and two housing colour variants available in 15-30 degree and 25-50 degree beam ranges, in black or white housing WITHOUT compromising output or focal point.

ES-RC-L100: 8 Unit Encore Road case

PHYSICAL

Length: 648 mm (25.5 in.)

Width: 259 mm (10.2 in.)

Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket

Weight: 7.7 kg (17 lbs)

DYNAMIC EFFECTS

Electronic shutter effect: Instant open and blackout

Electronic dimming: 0 – 100%

Strobe and pulse effects: Variable speed and action, random strobe

Color mixing: RGBLA

Color Temperature Range: 2000-10000K

Color selection: 26 color presets

CONTROL AND PROGRAMMING

Control options: DMX, stand-alone16-bit control: Intensity, CTC, RGBLA

Setting and addressing: Control panel with OLED display or via RDM

DMX channels: 1/10/17PWM: 600-2400 Hz

Standalone programming: Control panel with OLED display

DMX compliance: USITT DMX512-A

RDM compliance: ANSI/ESTA E1.20

Transceiver: Opto-isolated RS-485

OPTICS

Light source: 91 X RGBAL Luxeon Rebel LEDs (19 Red, 24 Green, 12 Blue, 24 Lime, 12 Amber)

Color temperature: 2000-10000K

Lens tube options: 19°, 26°, 36°, 50°

Minimum LED lifetime: 30,000 hours (to >70% luminous output)**Figure obtained under manufacturer’s test conditions

PHOTOMETRIC DATA

High Quality mode @ 6000K:Light Engine luminous output: 20000 lumen
Fixture luminous output: 5900 lumen
CRI (Color Rendering Index): >90 @ 6000K
CQS (Color Quality Scale): >87
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >106
TLCI (Television Lighting Consistency Index): >87High Output mode @ 5500K:Light Engine luminous output: 20000 lumen
Fixture luminous output: 6900 lumen
CRI (Color Rendering Index): >85
CQS (Color Quality Index): >90
TM-30 Rf (IES TM-30-15 Fidelity Index): >84
TM-30 Rg (IES TM-30-15 Gamut Index): >111
TLCI (Television Lighting Consistency Index): >85

CONSTRUCTION

Housing: Die-cast aluminum

Color: Black or white variant

Protection rating: IP20

GOBOS AND COLOR FRAME

Gobo size : A size, 100 mm OD, 75 mm image*, B size, 86 mm OD, 64.5 mm image*

Color frame size: 159 X 159 mm (6.25 X 6.25 in.)*Gobo holder not included

INSTALLATION

Mounting: Adjustable bracket

Location: Indoor use only

Orientation: Any

Minimum distance to combustible materials: 0.2 m (0.7 ft.)

Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)

CONNECTIONS

AC power in, thru: Neutrik PowerCON TRUE1DMX and RDM data in/out: 5-pin locking XLR

ELECTRICAL

AC power: 100-240 V nominal, 50/60 Hz

Power supply unit: Auto-ranging electronic switch-mode

Idle power (zero intensity): 5 W

Half-cycle RMS inrush current at 230 V, 50 Hz: 15.0 A

Fixture link via PowerCON at 100-120 V: Up to 4 fixtures

Fixture link via PowerCON at 200-240 V: Up to 9 fixtures

Power consumption figures are typical, not maximum. Allow for +/- 10% variation.

TYPICAL POWER AND CURRENT

110 V, 60 Hz: 2.4 A, 259 W, PF 0.99208 V, 60 Hz: 1.3 A, 250 W, PF 0.96230 V, 50 Hz: 1.3 A, 249 W, PF 0.95240 V, 50 Hz: 1.1 A, 249 W, PF 0.95

Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

THERMAL

Cooling: Forced air (temperature-regulated, low noise)

Maximum ambient temperature (Ta max.): 40° C (104° F)

Minimum ambient temperature (Ta min.): 0° C (32° F)

Total heat dissipation (calculated, +/- 10%): 1000 BTU/hr. (at full intensity, full white)

APPROVALS

EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547US safety: UL 1573US EMC: FCC Part 15 Class BCanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class B, ICES-005 Class BAustralia/NZ: RCMGlobal CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)

INCLUDED ITEMS

Power input cable (0.75mm2, 18 AWG), bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.)
Mounting bracket
User manual

ACCESSORIES

Cables, 16 A, for connection to power in chains:

Power input cables
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91611797
Power input cable, H07RN-F, 2.5 mm², 14 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91611786
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.): P/N 91610173
Power input cable, SJOOW, 12 AWG, bare ends to Neutrik TRUE1 NAC3FX-W (female), 5 m (16.4 ft.): P/N 91610174
Power relay cables
Power Relay Cable, H07RN-F, 2.5 mm², TRUE1-TRUE1 0.45 m (1.5 ft.): P/N 91611784
Power Relay Cable, H07RN-F, 2.5 mm², TRUE1-TRUE1 1.2 m (3.9 ft.): P/N 91611785
Power Relay Cable, H07RN-F, 2.5 mm², TRUE1-TRUE1 2.5 m (8.2 ft.): P/N 91611786
Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 0.45 m (1.5 ft.): P/N 91610170
Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 1.2 m (3.9 ft.): P/N 91610171
Power Relay Cable, SJOOW, 12 AWG, TRUE1-TRUE1, 2.5 m (8.2 ft.): P/N 91610172Connectors:Power connector, cable mount, Neutrik TRUE1 NAC3FX-W (female): P/N 91611789
Power connector, cable mount, Neutrik TRUE1 NAC3MX-W (male): P/N 91611788Installation hardware:G-clamp (suspension with fixture hanging vertically downwards only): P/N 91602003
Quick trigger clamp (suspension with fixture hanging vertically downwards only): P/N 91602007
Half-coupler clamp: P/N 91602005
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: P/N 91604006
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: P/N 91604007
