Description

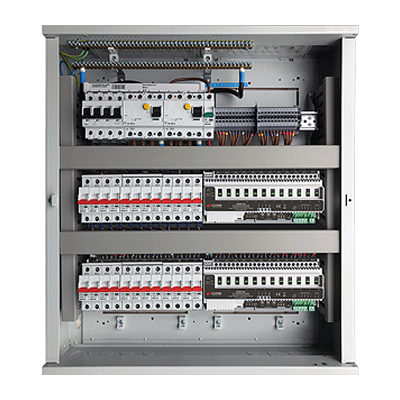

RigSwitch can be delivered in 12 or 24 channel cabinet configurations with RCD or RCBO options with a choice of user control interfaces. With individual relays rated for up to 32A operation RigSwitch can cater for even the most power hungry user. RigSwitch is ideal for switching power for today’s modern entertainment lighting systems, including moving lights, LEDs, amplifiers, specials and video equipment.
Product Features:
- DMX control per circuit (or control via DALI and iCANnet)
- Remote button panels available, or use any switch via contact closure
- Intelligent propagation delay to reduce power-up inrush nuisance tripping
- Manual override of any circuit (mechanical, not digital)
- 10 or 16 amps per circuit
- Neutral Disconnect MCBs with RCBO per circuit
- Includes cable gland plate insert (top)
OVERRIDE RELAYS:
The feed through relays provide outstanding features & performance in a truly competitive package. Each circuit is rated for up to 32 amps and is designed to switch heavy loads of all types, including resistive, inductive & capacitive.
CONTROL OPTIONS:
Three methods of control are available – DMX, DALI and iCAN. These can be used exclusively, or brought together to link with a virtually limitless number of other products to build a system of any size.
USER INTERFACE:
Control panels are available in brushed stainless steel as a 2 button wall panel, On & Off and a 6 button wall panel, 5 Scenes & Off. Also available – A UIM network powered universal interface with 6 configurable inputs, each input can be individually configured as 0-5V analogue, digital or photoelectric cell inputs.
