Description

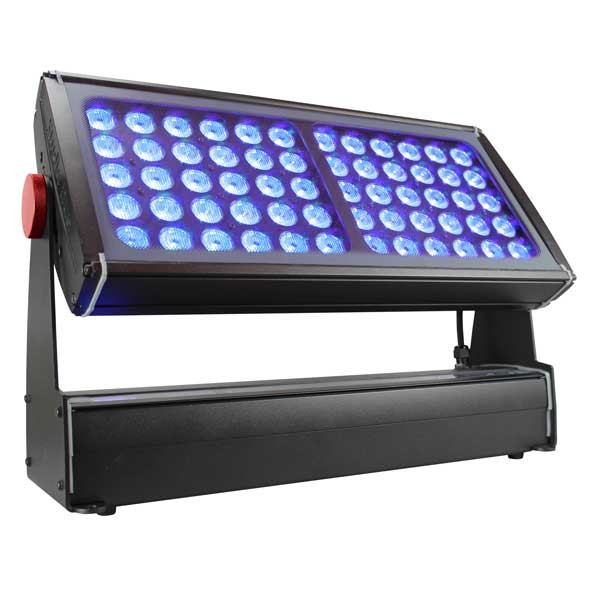

Using 60 high powerful LEDs RGBW/FC combined with an effective fan system, the key feature of the product is the incredible performance of the optics. The innovative optic system generates a rectangular and uniform light projection.The product is suitable for applications where a tremendous light output is required. The T-COLOR RGBW/FC is particularly useful for lighting hire companies for use on tours, festivals, large events, in theatres and for film and TV studios productions and generally for the architainment market.
• Standard fixture colour finishing is black.
• SOURCE
n. 60 RGBW (16W) LEDs
400W total light power
Total lm: R 6000, G 12000, B 1800, W 13000
• OPTIC
Square Opening (20ºx30º) 35mm lenses
On request:
– wide and narrow (35 mm lenses)
Available as accessories:
– 65° plan-filter
– Barn-door
– Anti-glare
• TILT
Manual 160°
• CONTROL
Standard interface: RS-485, optocoupled input
Protocol: USITT DMX512
• CONNECTIONS
Signal: 4pin IP 67 connector (male-female)
Main Power: 3x1mm cable
Available as accessories:
– Wireless DMX receiver
• SETUP AND CONFIGURATION
Control panel with touch technology
Led display with flip function
Dedicated DMX channel for white balance
DMX or Auto mode with Master-Slave function
Intelligent temperature control
Flicker-free function
Smooth dimming function
Halogen simulation
CYM simulation
• RATING PROTECTION
IP 64
• DMX CHANNELS
– 9CH mode
– 5CH mode
– 4CH mode
• POWER SUPPLY
Voltage range: 88-264VAC, 124-370VDC
Frequency range: 47-63Hz
Active Power factor: PF>0.95/230VAC, PF>0.98/115VAC
Current: 1.9A@230VAC; Fuse T10A
Power: 430W (on white balance)
• PHYSICAL
WxDxH: 613x148x415 mm
Weight: 19 Kg.
