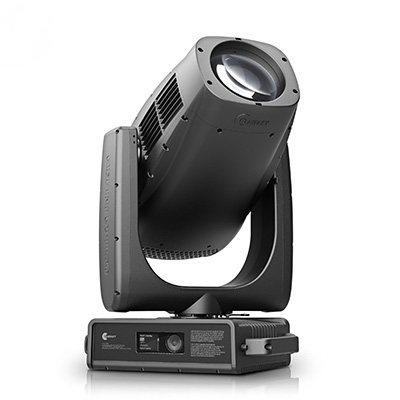

Ultimo Hybrid

Imagine a hybrid fixture that is powerful, versatile, and compact. Ultimo Hybrid brings your vision to life, indoors or out, with its IP66 water and dust resistance. Effortlessly shift between beam, spot, wash, and profile modes, reducing the need for extra fixtures. With intense brightness, a long-lasting short-arc lamp, and an advanced effects engine, every designer needs this all-in-one tool. Ultimo Hybrid: the ultimate evolution of what’s possible.

Send an enquiry

Description

Discover the amazing features that make Ultimo Hybrid the perfect choice for your lighting designs.
Here’s why Ultimo Hybrid is a game-changer:

  • Impressive Output and Longevity:  Ultimo Hybrid, powered by a 550W short-arc lamp, delivers an impressive 19,000-lumen output and lasts up to 4,000 hours. This ensures reliable, energy-efficient performance across numerous shows, making it a perfect choice for low-maintenance applications.
  • Smooth, Versatile Zoom:  Its motorised linear zoom ranges from evenly collimated spots (2° to 29° in Beam mode) to tightly focused beams (3° to 52° in Spot mode) enabling designers to craft dynamic scenes that set Ultimo Hybrid apart as the ultimate all-in-one solution.
  • Precision Control for Creative Freedom: The Advanced Four-Focal Plane Shutter System offers designers exceptional control over each blade. It grants custom effects like a “Total Curtain” with razor-sharp edge definition, unlocking new levels of creativity.
  • Absolute Position Innovation:  This special system remembers the fixture’s position in real time, even after power interruptions, ensuring precise repositioning and reducing setup time.
  • Unmatched Versatility in a Compact Design: Ultimo Hybrid packs the power of larger fixtures into a compact design, featuring an eight-gobo rotating wheel, a static gobo wheel, four- and eight-facet prisms, and linear frost for smooth washes. Its broad colour spectrum, high CRI, CMY mixing system, and 14 dichroic chips – including a striking deep red – produce professional-grade hues that tell stories without words.

The Evolution of Hybrid Lighting!
Ultimo Hybrid redefines hybrid lighting with its compact, feature-rich design and powerful output. Perfect for touring, live events, and permanent installations, this fixture brings versatility and brilliance to lighting designers everywhere. In a world where every beam tells a story, Ultimo Hybrid is here to help create yours.





LIGHT SOURCE

  • Source type: Signify MSD Platinum 500L Flex
  • Power: 548W
  • Colour temperature: 6800 K
  • CRI: 75
  • Lamp life expectancy: 4000 hrs L70*
    *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

  • Zoom range: 3° to 52° (Spot mode) – 2° to 29° (Beam mode)
  • Lumen Output: 19000 (Integrating Sphere)
  • Front lens diameter: Ø 160mm
  • Optical system: High efficiency

NOISE LEVEL

  • Fixed preset: 51.3 dBA

CONTROL and CONNECTIONS

  • Personalities: Single mode with 43 control channels
  • Protocols: DMX, Art-Net, RDM, sACN, CRMX TiMo FX RDM
  • Connectors:
    • Locking 5 pin XLR IN/THRU
    • Ethernet port: RJ45 IN/OUT
  • Power connector: PowerCon True1 IN/OUT
  • Web Server: Built In

DYNAMIC EFFECTS

  • Colours:
    • Linear CMY colour mixing
    • Linear CTO
    • Fixed colour wheel with 14 dichroic colours
  • Gobos:
    • 1 Rotating gobo wheel with 8 HD Indexable and replaceable
    • 1 Static Gobo Wheel with 18 gobos on 4 focal planes
  • Framing system:
    • 4 blades with +/- 60° rotation of the full system (6 beam reducers up to 0.5°)
    • “Total Curtain” effect allowing the full blackout with each single blade
  • Frost:
    • Linear heavy frost 5°
  • Rotating Effects
    • Aluminum animation wheel with continuous rotation in both direction at variable speed
    • 2 prisms (4 and 8 facet) with rotation in both direction at variable speed
  • Iris:
    • Motorised with variable pulse and random effects
  • Movement:
    • Tilt: 270° – 16bit
    • Pan: 540° – 16bit
    • Accuracy: Resolution Range
    • Absolute positioning – Special feature
    • Fast/Standard speed selectable by Function channel
    • Mechanical Pan/Tilt lock for safe transportation and maintenance
  • Beam:
    • Motorised Zoom and Focus
  • Dimmer/Shutter:
    • High resolution dimmer 16 bit 5 curves
    • Shutter and Strobe effect

HARDWARE and SOFTWARE

  • Long life self-charging battery
  • Display Graphic LCD backlit b/w Display
  • Firmware upload from another fixture
  • Firmware Upgrade via Web Server
  • Diagnostic
  • DMX monitoring
  • Remote access through RDM

HOUSING

  • Aluminium and steel structure with plastic covers
  • Two side handles for transportation
  • IP66 protection rate
  • Working in any position
  • Hanging system: with fast-lock Omega clamps (1/4) turn on the base
  • Optional safety chain

ELECTRICAL

  • Operating Voltage: 100-240V, 50/60 Hz
  • In/Out MAX: Max 2.6A at 100V, Max 8.0A at 240V
  • Power Supply: Electronic auto range with active PFC
  • Max Power consumption: Max 940W @100V – Max 850W @ 240V

THERMAL SPECIFICATION

  • Max ambient temperature 45°C (113°F)
  • Min ambient temperature -20°C (-4°F)
  • Max temperature of the external surface 90°C (194°F)
  • Total heat dissipation: 1872 BTU/hr ±10% / 1972 kJ/hr ±10%

SAFETY SPECS

  • Minimum distance of illuminated objects 8 metres (26’ 3”)
  • Minimum distance from flammable materials 0.2 metres (8”)
  • Fuse T10A – 250V
  • Thermally protected power supply (overheating and cooling failure)
  • Forced ventilation with axial fans

PACKAGING

  • Carton box + Polystyrene
  • Carton box + Foam shell
  • Flight case + Foam shell (2 positions)

WEIGHT – SIZE

  • Weight: 41.9 kg (92.4 lbs)
  • Base dimension: 320 x 450 mm– 12.6 x 17.7 in
  • Height with vertical head (h): 780 mm 30.7 in
  • Distance between two fixtures: 650mm


CLPULT100 Ultimo Data Sheet.pdf    273.64 KB
CLPULT100 Ultimo User Manual.pdf    358.49 KB
